Simolo Customs Ephasis Custom Bike Build

Here is the start of our all aluminum build, Ephasis, this bike will be finished in clear powder coat, with only the seat, rubber and engine being black.

Turning the steering neck in our CNC lathe

The steering neck on the left is a standard steering neck for a custom v-twin bike and the one on the right is for the aluminum build!

Preheating the neck so it can be properly welded to the thinner back bone

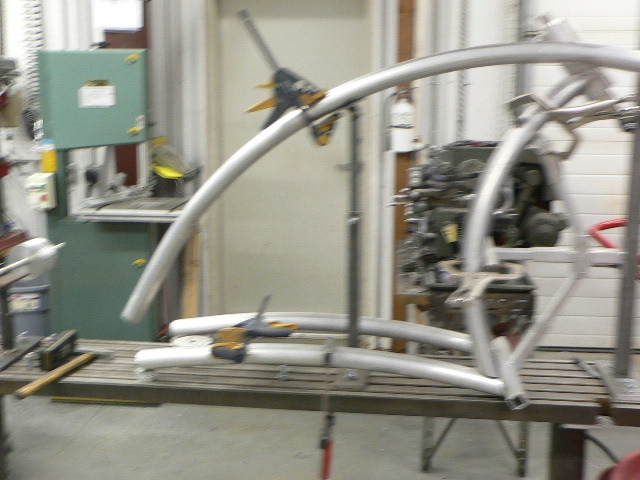

Our jig table allows us to build the jig with the bike as we need

Ready to be welded

The frame getting final welded

All welded up

Power Plus 100 Indian motor

Simolo Customs Lamech Custom Bike Build

Starting the frame from scratch

Getting the seat tubes just right

Fitting the rear rim, just to get a look

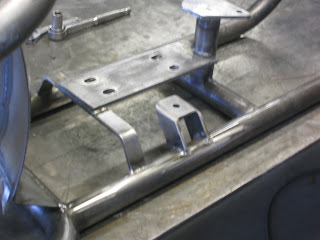

Tranny and rear engine mounting points, we ensure that the drive line sits centered weight wise in the bike. This gives you a balanced ride without having to ride side saddle

You can really start to see the lines now

You can see the tank needs a decent stretch

Building the seat area

Blending the fender area in

A few more things to finish up, but almost ready to be torn down

Finished bike

Simolo Customs Boaz Bike Build

The first ride on Boaz, this was the first custom we ever built many years ago!

Here's how all of our bikes start, with tube!

Our own CNC machined steering neck built in house.

Bending some DOM with our mandrel bender

Starting to look like a frame

Another angle getting ready to fit the seat tubes

Here you can see this unconventional design, this is when we use to build with customer input :)

Fitting it up with some parts

Fitting up the tins

Getting the drive line in place

Fully assembled the bike and rode it before tearing it apart for final assembly

Cleaned and ready for paint

epoxy primer/sealer

body work, molding the seams

high build primer ready for sanding

base coat laid down

pearl laid on over base

Ready for assembly

Getting the wiring done

Almost complete
