SC Carts 09 Precedent Build

 Here's a frame from a 2009 Club Car Precedent, just back from media blasting

 Here's another picture, you can see that this cart was disassembled down to nothing

 Starting to install the front end components, these parts have also been refinished in factory black paint

 We now have the upper and lower a arms installed along with the front body support

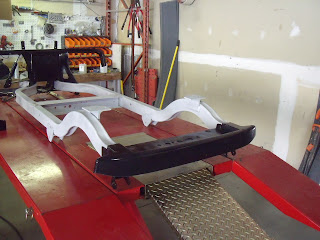

 We tied the rear end together with the bumper and leaf spring hangars

 Front shocks installed

 Rear body supports installed

 We even refinish the brake drums, these were sanded and painted in factory black

 This cart is getting a rear seat kit so we have opted to install a set of heavy duty leaf springs

 Here they are installed

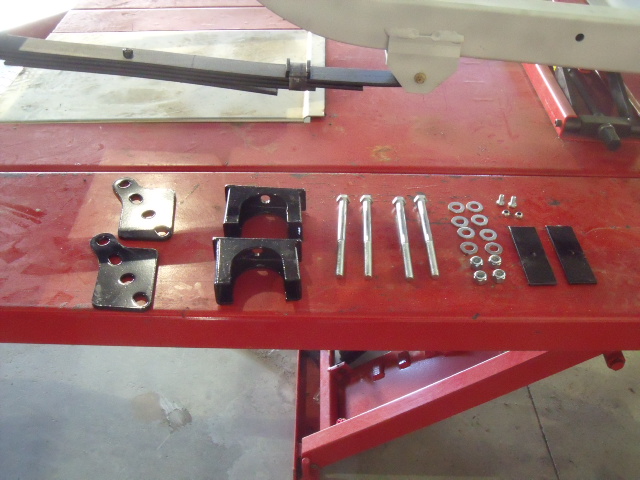

 We are also installing a 6" lift to allow for the 14" rim and tire package

 Lining up the rear end with the new lift kit, also you can see the new speed sensor (wires) installed on the motor

 Another shot of the reconditioned rear end, getting lined up

 The front end all installed with the 6" drop spindles

 14" wheel and tire package now installed

 A shot from the side

 Awesome clearance with the lift kit and tire package

 Here we have installed the steering box

 Another rear body support installed

 Front under body installed

 It's starting to come together now

 Here we have installed the rear under body the battery box, the steering column, the electronics and we have ran the wiring for the front and rear light kit

 We now installed the pedal group, and adjusted the brakes correctly

 We have installed the pedal cover panel in preparation for the floor mat

 We have installed the front under body

 Here we have put in the lower dash/cup holders

 The front light bar/bumper package installed and looking good

Now it's ready for paint and then we can do finally assembly
